Banquet Hall Acoustic Movable Partition Wall Good Quality Folding Sliding
AE Operable Partitions are a system of multiple panels suspended from tracks.
These partitions are manually operated and require no special equipment or tools.
The only tool required for operation is the operating handle, which is used to lock and operate the mechanical seals at the top and bottom, ensuring that the panels are acoustically sealed when closed.
AE's acoustically rated operable partitions are available in a variety of configurations, including paired, individual (omnidirectional) and continuously articulated (train) configurations.
Our advantages are:
1.We have rich experience in cooperating with major customers.
2.We can flexibly control the delivery time of orders.
3.We have a design team dedicated to the development of new products and solutions.
4.Our product performance is certified by SGS and ILAC-MRA.
5.Combined with German partition technology, we provide professional space solutions worldwide.
6.Help you extend the service life of professional products.
Roller Options & Features for Movable Partition Walls:
1. High-quality Dupont POM rollers.
2. Robust 304 stainless steel rollers designed for heavy-duty use, equipped with a safety device and CNC machining.
3. Exclusive patented wheel surface and shape enhance the usability of the entire movable partition wall system.
Panel Options & Features:
1. Thickness: 89mm for enhanced stability and sound insulation.
2. Offers a diverse range of acoustical and decorative finishes to suit various design preferences.
3. Constructed with a robust 6061-T6 profile and a Q235 steel frame inside for exceptional durability.
4. Features top and bottom jack lifting mechanisms with a sealing power of 800N. The magnetic seal with concave and convex profiles provides a magnetic attraction of 40N/m, ensuring secure closure and acoustic insulation.
Specification:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight |
Product Tags:
|
|

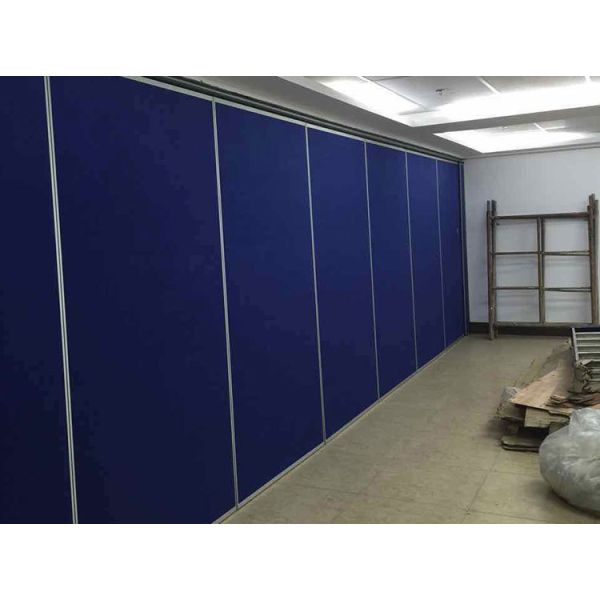

Acoustic Movable Partition Wall with 800N Sealing Power and 40N/m Magnetic Attraction for Banquet Halls Images
|
