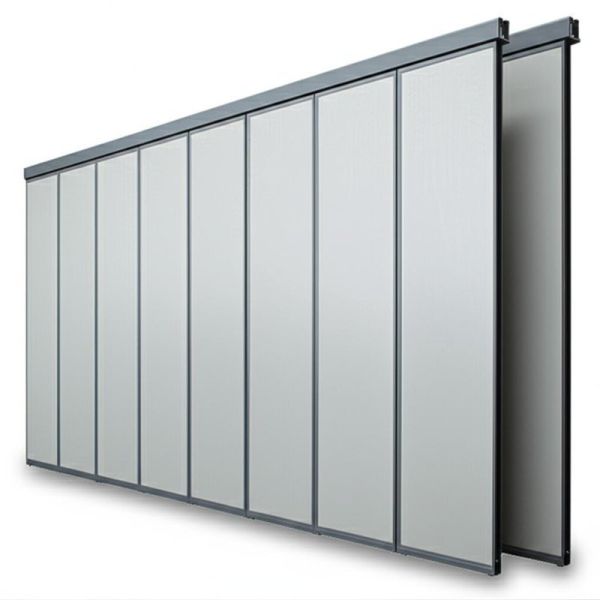

Sound Proof Insulation Acoustic Partition wall Operable For Conference Hall
Key Features of Our Acoustic Partition Walls
No Floor Track
Our acoustic partition walls are mounted from the ceiling, eliminating the need for floor tracks. This design feature removes tripping hazards and prevents debris from accumulating. When an acoustic bottom seal is needed, it is conveniently activated from within the operable panel itself.
Unlimited Customization and Options
We understand that aesthetics are crucial. That's why we offer a wide variety of surface treatments and construction options to suit any design or functional requirement. Choose from vinyl, fabric, carpet, veneer, high-pressure laminates, frescoes, and other custom surfaces. For added flexibility, MDF finishes allow for on-site surface treatment.
Durable Construction
Our acoustic partition walls feature a robust aluminum frame that ensures durability and rigidity across diverse applications. With heights ranging from 2 to 15 meters and four different thicknesses of aluminum frames, our partitions deliver reliable performance and safety.
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC machining
3. Unique and patented wheel surface and shape make the whole movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior durability
4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight |
